Open AIC-Cyan 6900 TDS →CARBOXYLIC SERIES · C.I. PIGMENT BLUE 15:3
PB15:3 self-dispersed cyan pigment dispersion.
AIC-Cyan 6900 is a Carboxylic Series self-dispersed aqueous cyan pigment dispersion with 15 wt% pigment solids. It supplies the PB15:3 colourant component for ink makers developing water-based inkjet formulations.
GRADE OVERVIEW
A cyan grade for your CMYK formulation trial.
Use this grade to establish the cyan part of a CMYK ink-development programme. Review the pigment identity, nominal concentration and product documents together with the magenta, yellow and black colourants selected for the same ink vehicle.
- Model
- AIC-Cyan 6900
- Colour index
- C.I. Pigment Blue 15:3 / PB15:3
- Series
- Carboxylic Series
- Pigment solids
- 15 wt%
- Formulation role
- Concentrated colourant component for aqueous inkjet ink formulation

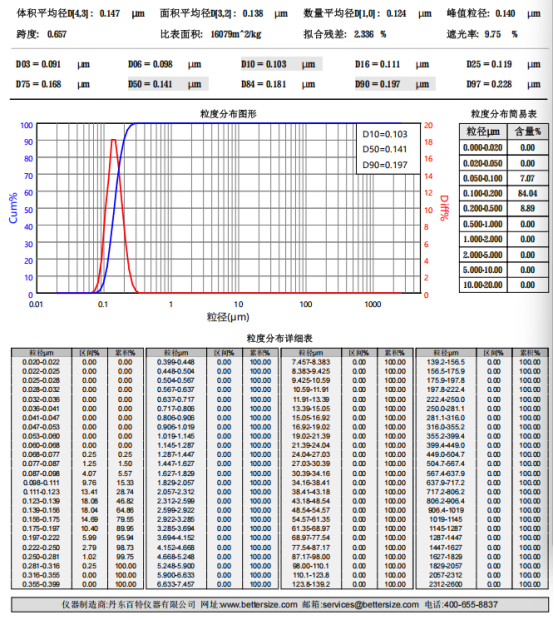

SUPPLIED PARTICLE-SIZE REPORT
The reported Cyan 6900 distribution.
The supplied model-specific report records the following percentile diameters. The values below are converted from the report's micrometres to nanometres.
- D10
- 103 nm
- D50
- 141 nm
- D90
- 197 nm
- D97
- 228 nm
These values describe the supplied report example. Confirm the measurement basis and current batch data when comparing grades or agreeing the acceptance criteria for your formulation.
Open original report image ↗
FORMULATION TRIAL
A focused cyan evaluation.
Prepare a cyan drawdown or print trial with the intended binder, humectants and other formulation components. Compare the colour against your agreed target and record the paper, film or other substrate used.
Connect colour development to the printhead and fluid path. Review filtration, circulation and storage observations alongside the relevant particle-size profile, viscosity, conductivity, surface tension and pH results.
For a CMYK programme, discuss Cyan 6900 with AIC-Magenta Red 1015, AIC-Yellow 2024 and AIC-Black 0058. Each colour still needs its own current data and qualification in your ink formula.
The published application routes include DTF, DTG, GTF, desktop pigment inks and corrugated digital printing. Plan the final ink trial around the intended printhead, substrate and process.
TECHNICAL DOCUMENTS
Review the model and the current batch.
Safety data sheet
Read the model-specific supplier safety and handling information, with PDF download.
Open AIC-Cyan 6900 SDS →Current batch COA
Request the applicable batch COA and the supporting results needed for your sample or supply programme.
Request current batch data →AIC-CYAN 6900 ENQUIRY
Discuss your cyan-ink development brief.
Share your application, printhead, substrate, ink vehicle and trial quantity. We can bring together the current product data and sample information for AIC-Cyan 6900.
Discuss AIC-Cyan 6900
