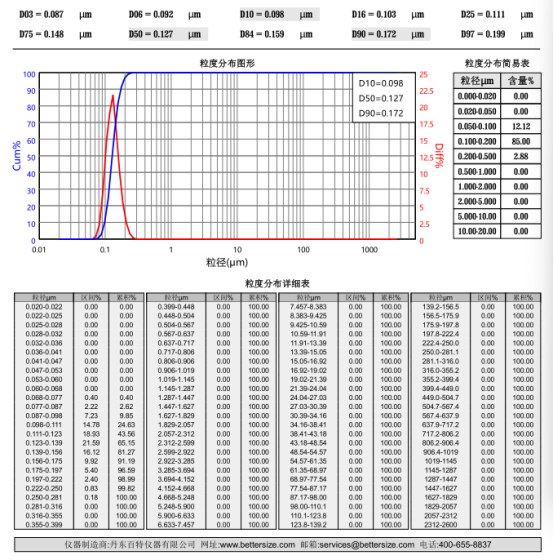

AIC-Black 0058
Supplied report example · 15 wt% nominal pigment solids
- D10
- 98 nm
- D50
- 127 nm
- D90
- 172 nm
- D97
- 199 nm
MODEL-SPECIFIC PARTICLE DATA
Particle-size reports for AIC pigment dispersions.
Open the supplied original charts, review the reported percentile diameters, and request current data for the grade you are evaluating.
10 report examplesCarboxylic & Phosphate SeriesOriginal charts available
FIND YOUR MODEL
Read the result with its product identity.
The values below are reproduced from supplied report examples and converted from µm to nm. They describe the measured samples; use the current batch COA and agreed test conditions for qualification.
Showing all 10 supplied report examples.
AIC-Cyan 6900
Supplied report example · 15 wt% nominal pigment solids
- D10
- 103 nm
- D50
- 141 nm
- D90
- 197 nm
- D97
- 228 nm

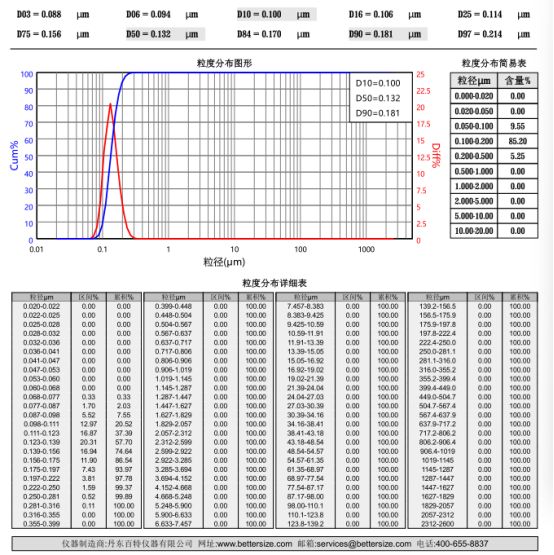

AIC-Magenta Red 1015
Supplied report example · 15 wt% nominal pigment solids
- D10
- 100 nm
- D50
- 132 nm
- D90
- 181 nm
- D97
- 214 nm

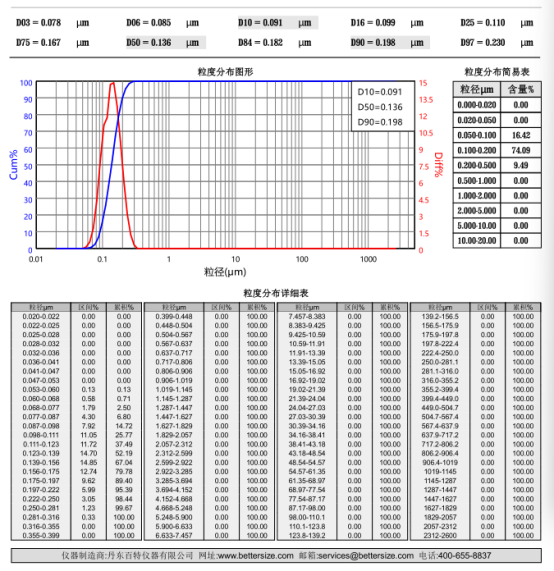

AIC-Yellow 2024
Supplied report example · 15 wt% nominal pigment solids
- D10
- 91 nm
- D50
- 136 nm
- D90
- 198 nm
- D97
- 230 nm

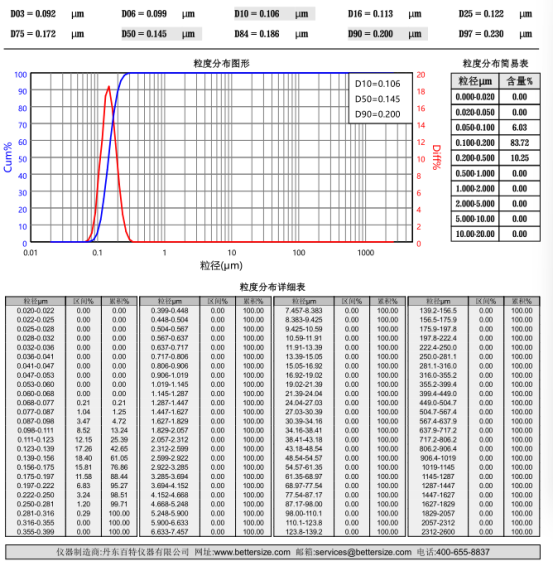

AIC-Magenta Pink K6B
Supplied report example · 15 wt% nominal pigment solids
- D10
- 106 nm
- D50
- 145 nm
- D90
- 200 nm
- D97
- 230 nm

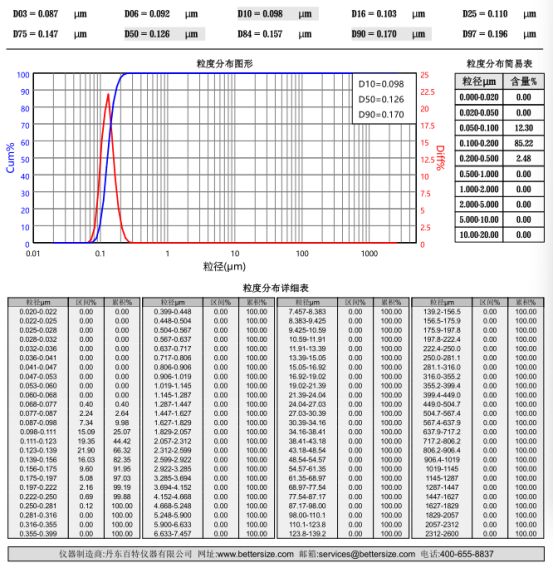

AIC-Black 9003
Supplied report example · 15 wt% nominal pigment solids
- D10
- 98 nm
- D50
- 126 nm
- D90
- 170 nm
- D97
- 196 nm

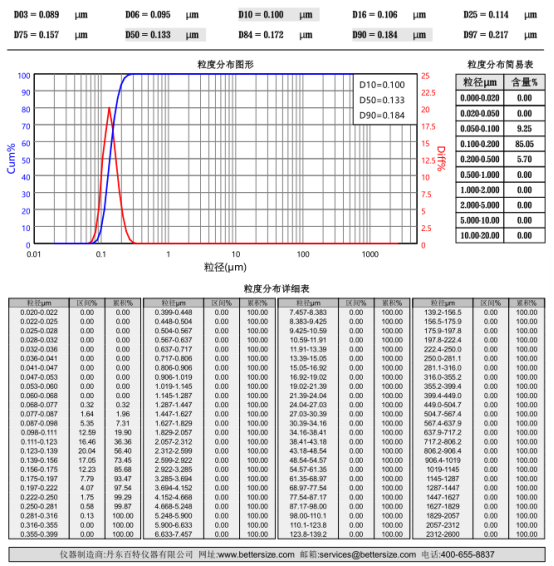

AIC-Magenta Red HC-1102B
Supplied report example · 15 wt% nominal pigment solids
- D10
- 100 nm
- D50
- 133 nm
- D90
- 184 nm
- D97
- 217 nm

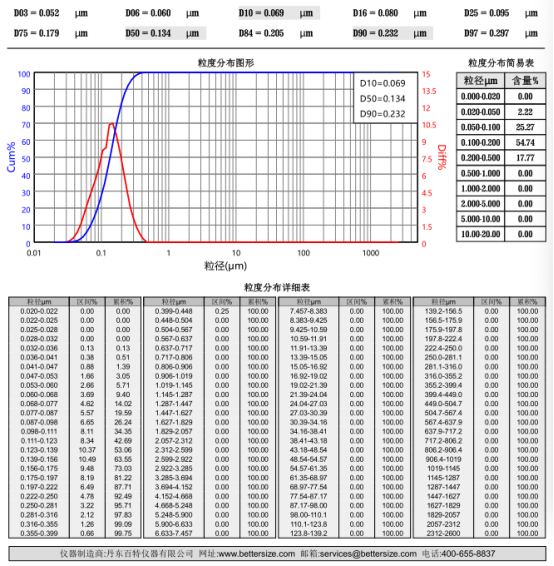

AIC-Magenta Pink HC-S6B
Supplied report example · 15 wt% nominal pigment solids
- D10
- 69 nm
- D50
- 134 nm
- D90
- 232 nm
- D97
- 297 nm

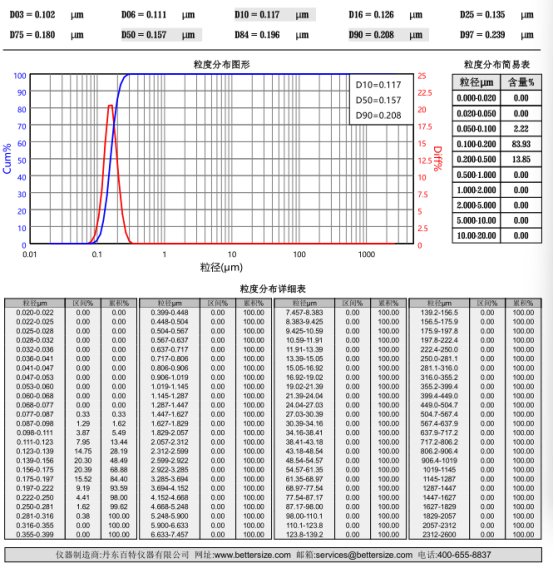

AIC-Cyan HC-7533
Supplied report example · 15 wt% nominal pigment solids
- D10
- 117 nm
- D50
- 157 nm
- D90
- 208 nm
- D97
- 239 nm
Supplied report D50: 157 nm; current TDS target: ≤150 nm. Confirm measurement basis and current grade specification with AIC.

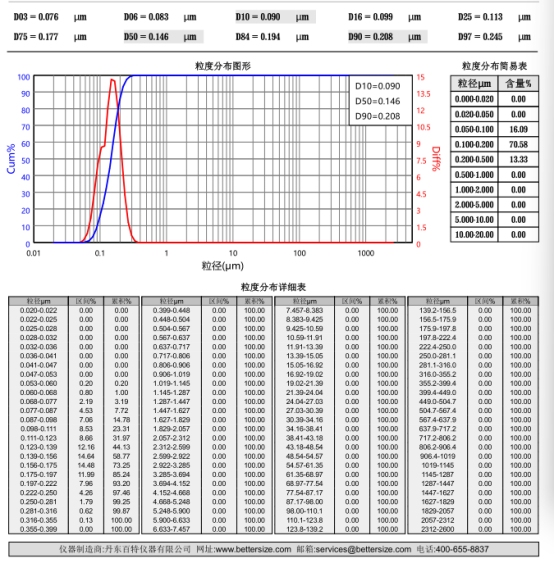

AIC-Orange 7372
Supplied report example · 15 wt% nominal pigment solids
- D10
- 90 nm
- D50
- 146 nm
- D90
- 208 nm
- D97
- 245 nm
No report matches these filters. Clear the filters to see all available models, or ask AIC for the current report.
